Integration
Onboard API Overview
Getting Started with K150S Onboard API
Overview
The enVision K150S dimensioner is equipped with an onboard HTTP API that supports a number of features including measure triggering and image retrieval.
When enabled, the API can be reached at http://<your-device-ipaddress>/api/v1.
To find your device IP address see the section Determining Device IP Address below.
By default, the onboard HTTP API is disabled. See the API Guide for details on enabling the onboard API.
For more information on how use the onboard API to trigger the device, as well as details on other available APIs, see the enVision K150S Api Guide.
Determining Device IP Address
The device IP address can be accessed by navigating to the Network Settings page. The Network Settings page can be navigated to by going to the settings page and clicking the network settings button. The images below show the step by step to access the Network Settings.
- Tap the arrow once to expose the settings icon
- Tap the settings button to access device settings

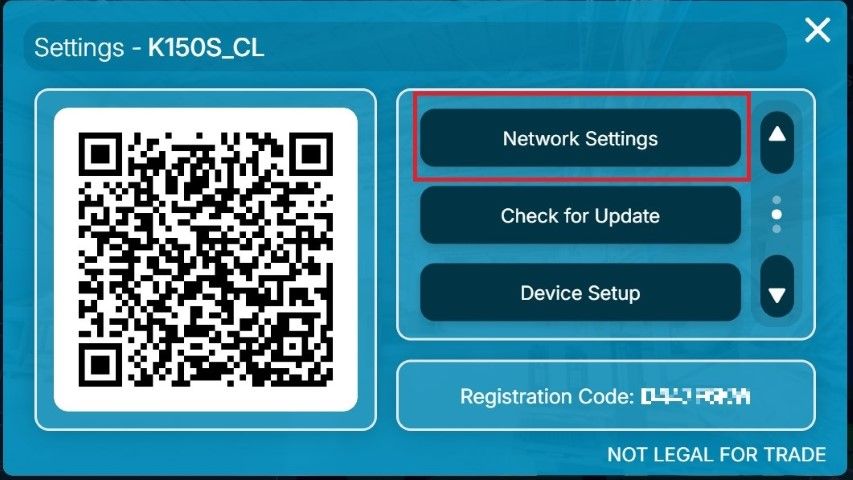

- Tap
Network Settingsto display the network information

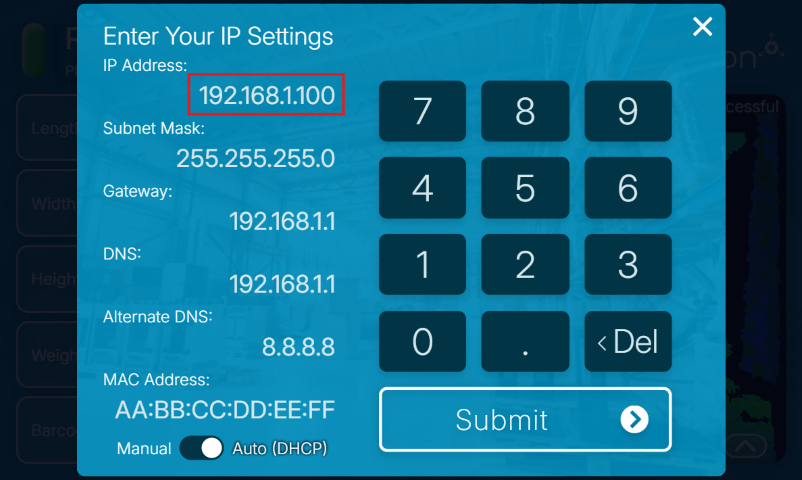

- The first field displays the IP Address of the device
