Operatingmodes

Measurement

In this mode the device can only measure objects
If video operating modes are not allowed to be used, the device defaults to Measurement Only Mode. This mode will allow users to only dimension objects.

User Interface

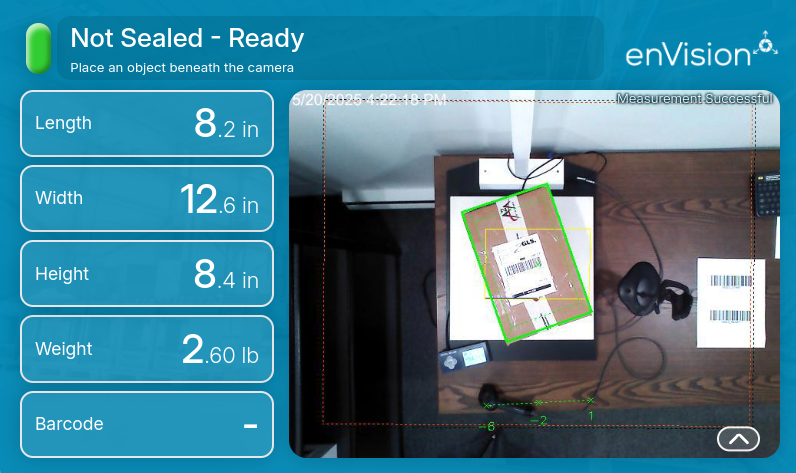

While in this mode the user will be able to see the following, the dimensions of the object, the weight, and the barcode scanned. An example of the output can be seen here. Measurement UI

Usage

Measurement

A user is able to trigger a measurement using a Remote API, Local Peripherals, or through a Local API.

Available Peripherals

While in this mode the following peripherals can be connected to the device

Available Local Triggers

While in this mode all Local Triggers will be available to trigger the device measurements.

Available Endpoints

Assuming that Enable Local API is set to true then here is the availability of the following endpoints

  • Measure API endpoints will be available to trigger measurements
  • Video API endpoints will NOT be available to trigger recording options
