Operatingmodes

Video Only

In this mode the device can only record videos and will not dimension any objects
If video operating modes are not allowed to be used, the device defaults to Measurement Only Mode. This mode will allow users to only dimension objects.

User Interface

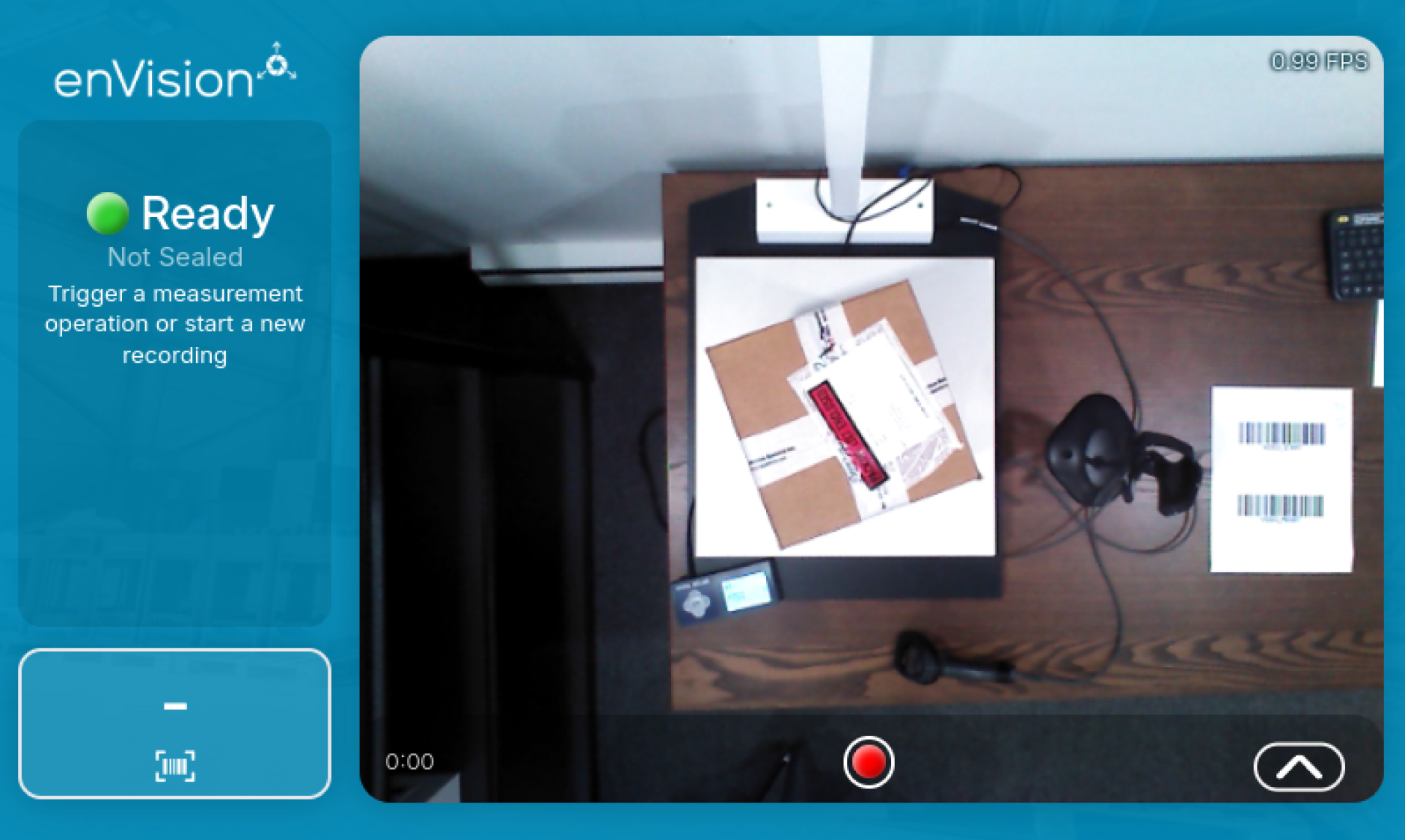

While in this mode the user will be able to see a record button and the barcode scanned. Video UI

Usage

Start Video

A user can start a recording by either scanning a barcode that has the value VIDEO_START, through a remote trigger (either Remote API or Local API), or by clicking the record button on the UI.

Stop Video

A user can stop the video by scanning a barcode, through a remote trigger (either Remote API or Local API), or by clicking the stop recording button on the UI.

Upon stopping the video the recording will begin encoding and link said video to a transaction. This video is then saved locally until the start of a new recording.

Cancel Video

A user can cancel the video by scanning a barcode that has the value VIDEO_RESET, through a remote trigger (either Remote API or Local API), or by clicking the trash can on the UI.

Cancelling a recording will stop the video and clear it from the enVision K150S' local memory and storage.

Available Peripherals

While in this mode the following peripherals can be connected to the device

The Weigh Scale is not available as a peripheral in Video Only mode because this mode does not focus on dimensioning an object.

Available Local Triggers

While in this mode Local Triggers will NOT have the option to be turned on or off for triggering the device measurements. On a barcode scan the video will be triggered to stop if recording. And on a weight event nothing will happen because no scale can be connected in this mode. This is to maintain proper process flow.

Available Endpoints

Assuming that Enable Local API is set to true then here is the availability of the following endpoints

  • Video API endpoints will have full capability. The user will be able to Start, Stop and Cancel recordings using the Local API
  • Measure API endpoints will NOT be available to trigger measurements
